Hadron 640 Development Kits
Hadron™ 640 development kits pair the performance-leading Hadron 640 series with development hardware and software drivers to quickly integrate with the Qualcomm® RB5, NVIDIA® Jetson Nano, Qualcomm Snapdragon 865, or the FLIR AVP.
The development kits enable integrators to start imaging and controlling the infrared thermal and visible camera in hours, saving potentially weeks of development time and cost. Hadron 640 includes a 640x512 radiometric resolution Boson® or Boson+ providing the ability to see through total darkness, smoke, most fog, and glare as well as take the temperature of every pixel in the scene.
The 64MP visible camera enables long-distance imaging and AI and machine learning for intelligent sensing applications. With a size, weight, and power (SWaP) optimized design and the rapid development kits, the Hadron 640 is the ideal dual sensor payload for integration into unmanned aircraft systems (UAS), unmanned ground vehicles (UGV), robotic platforms, and AI-ready applications where battery life and run-time are mission critical.
PLUG-AND-PLAY DEVELOPMENT SOLUTION
Same-day operation reduce development cost and time to market
- Includes interface boards and cabling hardware (development board not included)
- Drivers available for NVIDIA Jetson Nano and Qualcomm RB5 and 865
- Supports Linux and Android development
- Highly qualified, technical services team available to support integration

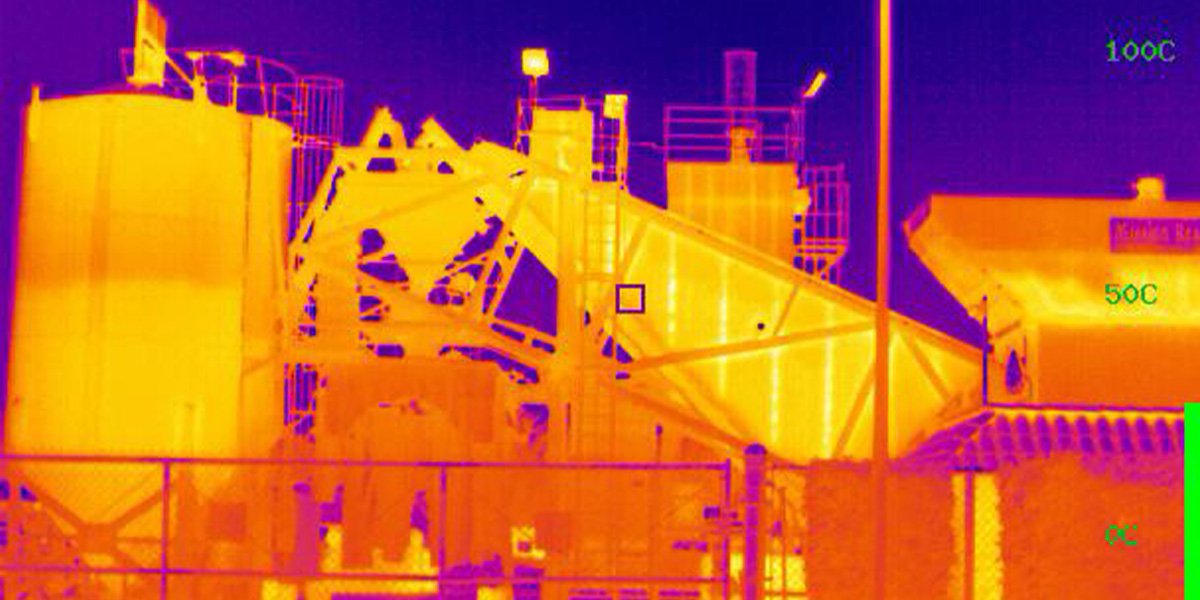

INDUSTRY-LEADING THERMAL AND VISIBLE CAMERA PERFORMANCE
Collect high-speed, dual VGA radiometric thermal and HD visible imagery
- 64MP visible camera resolution
- Compact, radiometric, 640x512-resolution Boson or Boson+ provides the temperature of every pixel
- Flexible dual 60 Hz video output via USB or MIPI
- Classified under US Department of Commerce jurisdiction as EAR99

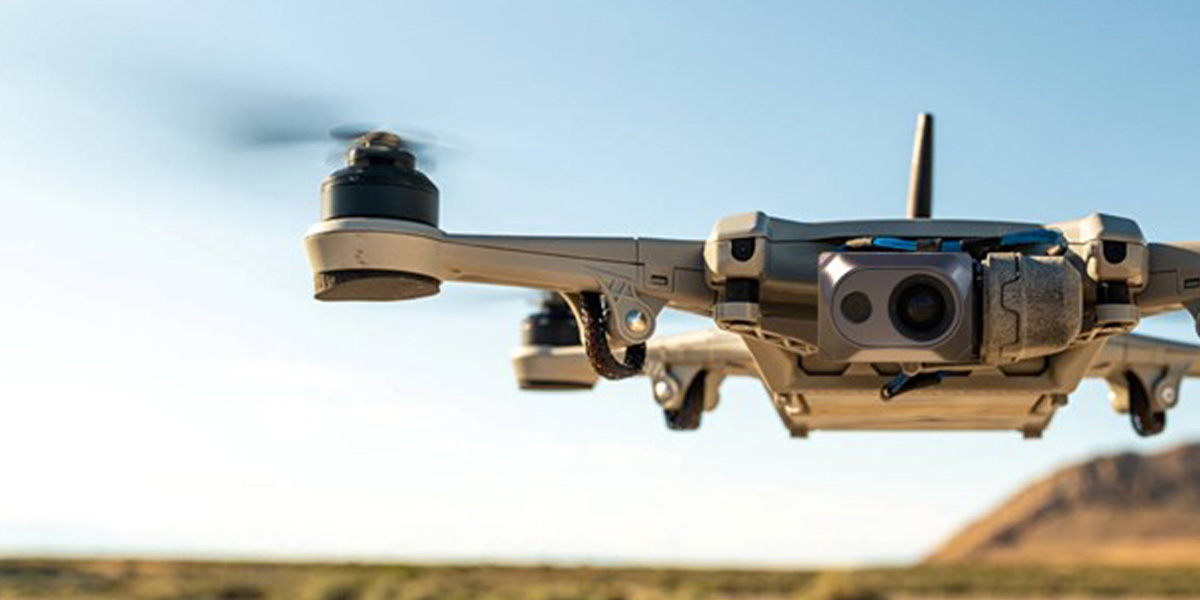

SIZE, WEIGHT, AND POWER OPTIMIZED DESIGN
Extend operation time with compact, lightweight, and low-power module
- Low, steady state power consumption at 1.8W
- IP54-rated dust and water protection
- Lightweight 56 g enables longer flight time and extends battery life
Model Finder
| Product | Status | Compare |
|---|---|---|

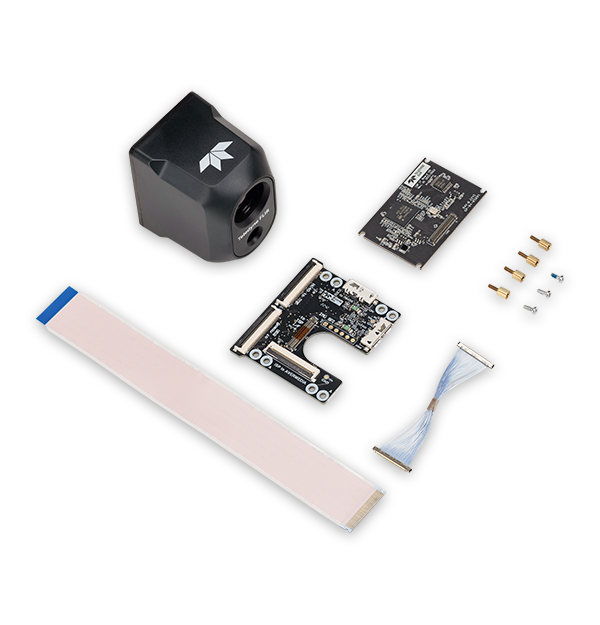

NVIDIA Jetson Nano Test Kit for Hadron 640R421-0095-00 |
In Production Request Info |
|
Qualcomm RB5 Test Kit for Hadron 640R421-0096-00 |
In Production Request Info |
|
Qualcomm Snapdragon 865 Open Q Test Kit for Hadron 640R421-0094-00 |
In Production Request Info |
|
Resources & Support
Assets below are shared by all models in this product family.
The Engineering Datasheet provides detailed information.
- Functional Characteristics
- Technical Specifications
- Performance Data
- Electrical and External Circuitry
- Mechanical Recommendations
The mechanical drawings and 3D files are available in IDD+ and STEP formats.
Hadron 640 Development Kits Datasheet
Hadron 640 Family Engineering Datasheet R170
Hadron 640 Series Datasheet
Hadron 640R Integration Guide Rev 1.12
Visit the Support Center for help with your Teledyne FLIR OEM products or submit a support ticket, by visiting our Technical Support Center.
