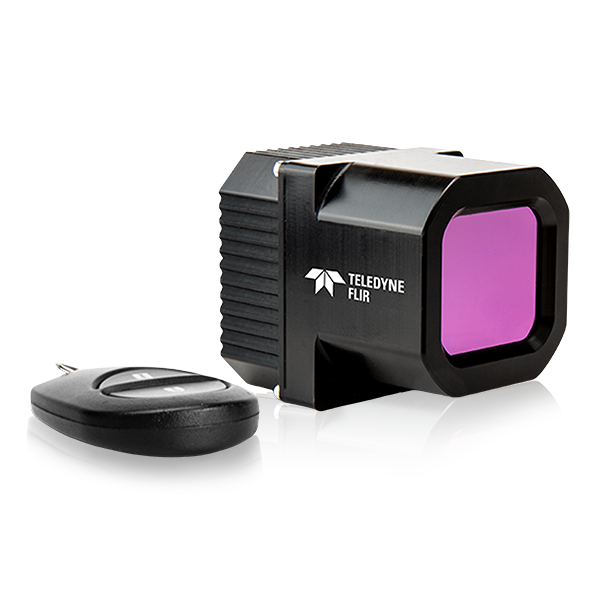

FLIR ADK
Thermal infrared cameras are the best sensor technology for pedestrian and animal detection, day or night. The FLIR ADK™ is a cost-effective way to develop the next generation of automotive thermal vision in advanced driver assistance systems (ADAS) and autonomous vehicles (AVs). ADK provides the critical data needed to improve automated decision-making in vehicle safety functions, including automatic emergency braking (AEB). The rugged, IP67-rated enclosure incorporates a heated window for all-weather driving. With GMSL, USB, and FPD-Link interface options available from Teledyne FLIR, integration is plug-and-play.
Model Finder
Results:
| Product | Resolution | Frame Rate | Pixel Pitch (μm) | FOV Horizontal | Temperature Measurement | Status | Compare |
|---|---|---|---|---|---|---|---|
FLIR ADK, 640 x 512, FPD-LINK III, 24° FOV40640F024-6PAAX |
640 × 512 | Full Frame (30 & 60 Hz selectable), 9 Hz optional | 12 µm | 24° | Discontinued |
|
|
FLIR ADK, 640 x 512, FPD-LINK III, 32° FOV40640F032-6PAAX |
640 × 512 | Full Frame (30 & 60 Hz selectable), 9 Hz optional | 12 µm | 32° | Discontinued |
|
|
FLIR ADK, 640 x 512, FPD-LINK III, 50° FOV40640F050-6PAAX |
640 × 512 | Full Frame (30 & 60 Hz selectable), 9 Hz optional | 12 µm | 50° | Discontinued |
|
|
FLIR ADK, 640 x 512, FPD-LINK III, 75° FOV40640F075-6PAAX |
640 × 512 | Full Frame (30 & 60 Hz selectable), 9 Hz optional | 12 µm | 75° | Discontinued |
|
|
FLIR ADK, 640 x 512, GMSL1, 24° FOV40640G024-6PAA1 |
640 x 512 | Full Frame (30 & 60 Hz selectable), 9 Hz optional | 12 µm | 24° | No | In Production Request Info |
|
FLIR ADK, 640 x 512, GMSL1, 32° FOV40640G032-6PAA1 |
640 x 512 | Full Frame (30 & 60 Hz selectable), 9 Hz optional | 12 µm | 32° | No | In Production Request Info |
|
FLIR ADK, 640 x 512, GMSL1, 50° FOV40640G050-6PAA1 |
640 x 512 | Full Frame (30 & 60 Hz selectable), 9 Hz optional | 12 µm | 50° | No | In Production Request Info |
|
FLIR ADK, 640 x 512, GMSL1, 75° FOV40640G075-6PAA1 |
640 x 512 | Full Frame (30 & 60 Hz selectable), 9 Hz optional | 12 µm | 75° | No | In Production Request Info |
|
FLIR ADK, 640 x 512, GMSL2, 24° FOV40640G024-6PAA2 |
640 x 512 | Full Frame (30 & 60 Hz selectable), 9 Hz optional | 12 µm | 24° | No | In Production Request Info |
|
FLIR ADK, 640 x 512, GMSL2, 32° FOV40640G032-6PAA2 |
640 x 512 | Full Frame (30 & 60 Hz selectable), 9 Hz optional | 12 µm | 32° | No | In Production Request Info |
|
FLIR ADK, 640 x 512, GMSL2, 50° FOV40640G050-6PAA2 |
640 x 512 | Full Frame (30 & 60 Hz selectable), 9 Hz optional | 12 µm | 50° | No | In Production Request Info |
|
FLIR ADK, 640 x 512, GMSL2, 75° FOV40640G075-6PAA2 |
640 x 512 | Full Frame (30 & 60 Hz selectable), 9 Hz optional | 12 µm | 75° | No | In Production Request Info |
|
FLIR ADK, 640 x 512, USB-C, 24° FOV40640U024-6PAAX |
640 x 512 | Full Frame (30 & 60 Hz selectable), 9 Hz optional | 12 µm | 24° | No | In Production Request Info |
|
FLIR ADK, 640 x 512, USB-C, 32° FOV40640U032-6PAAX |
640 x 512 | Full Frame (30 & 60 Hz selectable), 9 Hz optional | 12 µm | 32° | No | In Production Request Info |
|
FLIR ADK, 640 x 512, USB-C, 50° FOV40640U050-6PAAX |
640 x 512 | Full Frame (30 & 60 Hz selectable), 9 Hz optional | 12 µm | 50° | No | In Production Request Info |
|
FLIR ADK, 640 x 512, USB-C, 75° FOV40640U075-6PAAX |
640 x 512 | Full Frame (30 & 60 Hz selectable), 9 Hz optional | 12 µm | 75° | No | In Production Request Info |
|
Media gallery
Resources & Support
News articles and white papers written by Teledyne FLIR OEM experts to help you integrate your Teledyne FLIR OEM products.
For technical questions, find answers by visiting our FAQ at: flir.custhelp.com
Below are assets shared by all models of this product family.
For model-specific assets, select an option in the Model Finder above.
You must be logged in to download software or firmware. Please sign in or create an account here.
2.0.6 IDD & SDK
ADK 2.0 - STEP Files
Boson and ADK GUI 3.0.0 with x64 (64-bit) Drivers
Boson and ADK GUI with x64 Drivers
Boson and ADK GUI with x86 (32-bit) Drivers
Boson Lens Selector Tool
Enter your target parameters to receive a recommended lens focal length.
Visit the Support Center for help with your Teledyne FLIR OEM products or submit a support ticket, by visiting our Technical Support Center.
