PTU-5

Model: 445-0005-01-00
product image

Key Specs

Top Payload Capacity
Side Payload Capacity
5 lbs / 2.2 kg
6 lbs / 2.7 kg
In Production
Standing only six inches tall when fully integrated, the FLIR PTU-5 can hold up to five pounds on its top bracket, packing incredible performance into a compact package. Even with its small size the PTU-5 is more accurate than many other — more expensive — systems thanks to the absolute encoders used on the drive axes. Fully sealed and weatherproof rated to IP67, the PTU-5 can be used anywhere, even outdoors.

NOTE: Accessories not included, see options at the bottom of this page.

CLASS-LEADING SPEED AND ACCURACY

Turn on and track moving targets in seconds with accuracy and repeatability to 0.1°, and Pan speeds up to 150 degrees per second

EXTRA SMALL, RUGGED, PORTABLE DESIGN

Lightweight, MIL-spec system for harsh environments, an integrated micro controller - so no extra boxes are needed -- plus it's weatherproof and IP67 certified .

EASY INTEGRATION

Featuring flexibility for a wide range of applications and sensors, a slip ring enabling continuous rotation, and top or side bracket options.

Specifications

Performance

Pan Resolution
0.005°
Tilt Resolution
0.005°

Electrical

Input Voltage
12-30 VDC unregulated (fastest performance and torque @ 30 VDC)

Mechanical

Payload Mounting
Single top mount or dual side
Slipring
Standard
Weight
4.7 lbs / 2.1 kg

Connections & Communications

Interface Controls
Built-in Ethernet (TCP/IP or web), Pelco D, serial (RS-485, RS-422). SDK Available
Wiring Configuration
11 general pass-though lines

Environmental & Approvals

Standards
IP67 Certified

Export Designations

ECCN Code
EAR99
Compatible Accessories

Resources & Support

News articles and white papers written by Teledyne FLIR OEM experts to help you integrate your Teledyne FLIR OEM products.

For technical questions, find answers by visiting our FAQ at: flir.custhelp.com

Technical Guidance

Teledyne FLIR Pan-Tilt Web Control

Learn more

FAQ

Are FLIR PTU's mountable on some other product that can be purchased from another company?

Read the Story

Article

Are FLIR's pan tilts subject to any ITAR or EAR restrictions?

Read the Story

FAQ

Are side-mount bracket(s) installed on a pan tilt unit by FLIR?

Read the Story

FAQ

Are side-mount brackets difficult to install on a FLIR pan tilt?

Read the Story

FAQ

Can 2-wire RS-485 be used instead of 4-wire for PTU operation?

Read the Story

You must be logged in to download software or firmware. Please sign in or create an account here.

FLIR PTU Finder

Firmware Download

Download

Assets below are shared by all models in this product family.

FLIR PTU-5 DATASHEET

Datasheet

Download

E Series Gamepad Control

User Manual

Download

E-Series-Command-Reference-Manual

User Manual

Download

PTU-5_User Manual_v3.10

User Manual

Download

Visit the Support Center for help with your Teledyne FLIR OEM products or submit a support ticket, by visiting our Technical Support Center.

Related Products

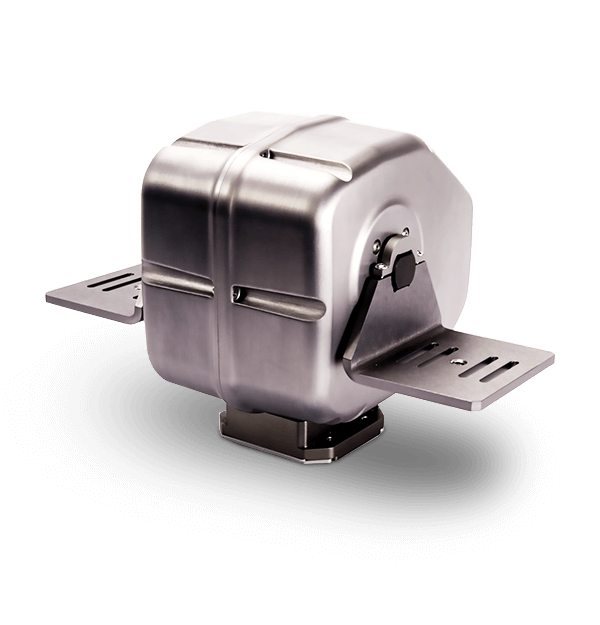

FLIR PTU-D48E

FLIR PTU-D48E

Pan/Tilt Unit for side-mounted payloads up to 15 lbs

  • Top Payload Capacity: 10 lbs / 4.5 kg
  • Pan/Tilt Resolution 0.006°/0.003°
  • Weight: 12 lbs / 5.4 kg
View Product

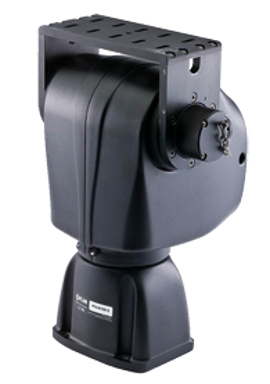

FLIR PTU-D100EX
