Prism™ ISP is a collection of image signal processing (ISP) software libraries that include super-resolution, electronic image stabilization, image fusion, turbulence mitigation, noise reduction, and more. Compiled to run on low-power embedded processors from Qualcomm and NVIDIA, enabling developers to bring computational imaging to the edge while improving performance, lowering development costs, and shortening time to market.
Prism ISP is compatible with Teledyne FLIR market-leading thermal cores including Boson®, Tau® 2, Hadron™, and Neutrino®. The ISP libraries enable integrators to leverage high-performance ISP algorithms that dramatically enhance the viewed image quality and AI capabilities of world-class infrared camera modules for defense, industrial, and commercial applications.
Prism ISP is compatible with Teledyne FLIR market-leading thermal cores including Boson®, Tau® 2, Hadron™, and Neutrino®. The ISP libraries enable integrators to leverage high-performance ISP algorithms that dramatically enhance the viewed image quality and AI capabilities of world-class infrared camera modules for defense, industrial, and commercial applications.
INDUSTRY-LEADING THERMAL PERFORMANCE
High-value image quality enhancements improve operator viewing and perception software pre-processing
- Super-resolution resolves detailed features and produces a high-quality image
- Radiometric-JPGs unlock Teledyne FLIR’s ecosystem, including FLIR Thermal Studio™
- Patented Teledyne FLIR MSX® enhances thermal images with visible edge details
- De-scintillation mitigates turbulence in long-range imaging
LEVERAGE ALGORITHM ECOSYSTEM TO SHORTEN TIME TO MARKET
Flexible software library lowers investment for integrating thermal-camera computational imaging
- Compatible with Teledyne FLIR ADK, Boson, Tau 2, Hadron, and Neutrino
- Supports the latest embedded processors
from NVIDIA and Qualcomm
BUILT FOR DEVELOPERS WITH THE TELEDYNE FLIR BRAND PROMISE
Trusted global leader in thermal infrared sensing and solutions
- Sample C++ reference application with libraries and documentation
- Expert technical services available to support integration
- Supports Linux and Windows (by request)
Specifications
General
- Part Number
- 110-0200-01
Software Features
- Authentication
- Camera to ECU key handshake with 256-bit challenge/response
- Cross Modality Image Registration
- Automatic alignment of thermal and EO to compensate for parallax and time sync differences
- Deblurring
- Blind and semi blind (motion known) methods supported to restore MTF (thermal video)
- Dewarping
- Radial and tangential lens dewarping

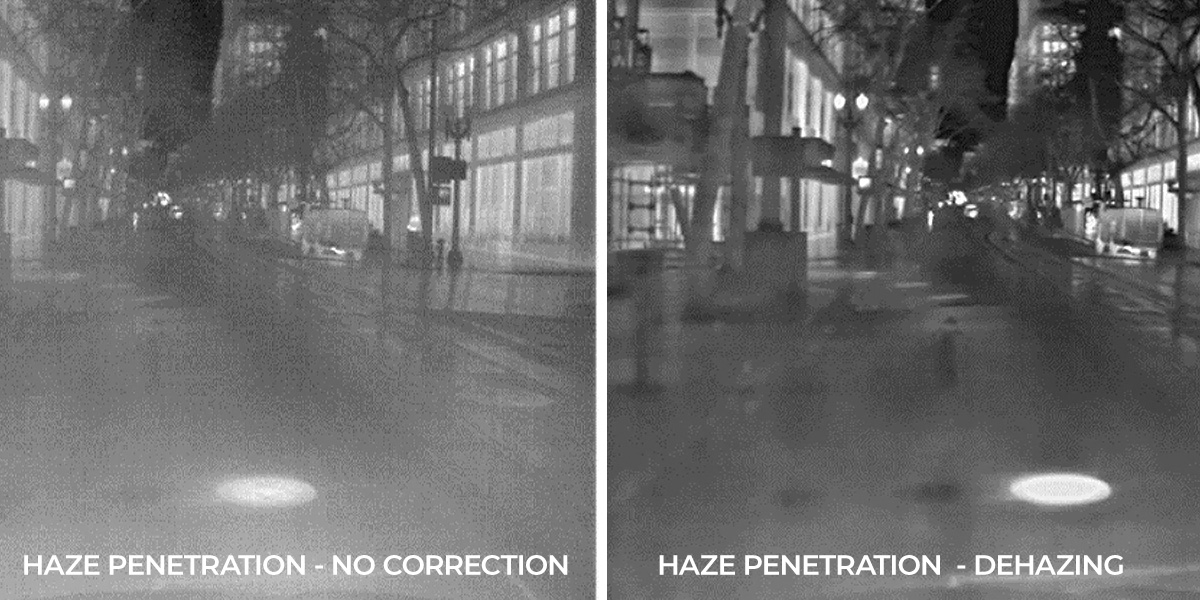

- Haze Penetration
- Locally adaptive compensation for atmospheric dispertion (thermal)
- Motion Compensated Temporal Noise Reduction
- Advanced, mutiframe noise reduction (thermal video)
- Pseudo-Color
- Multiple color palletes available (thermal video)
- Rectification
- Visible & thermal camera calibration process with pixel-accurate registration of visible & thermal
- Scene Based Non-Uniformity Correction
- Fixed pattern nosie removal (thermal video)

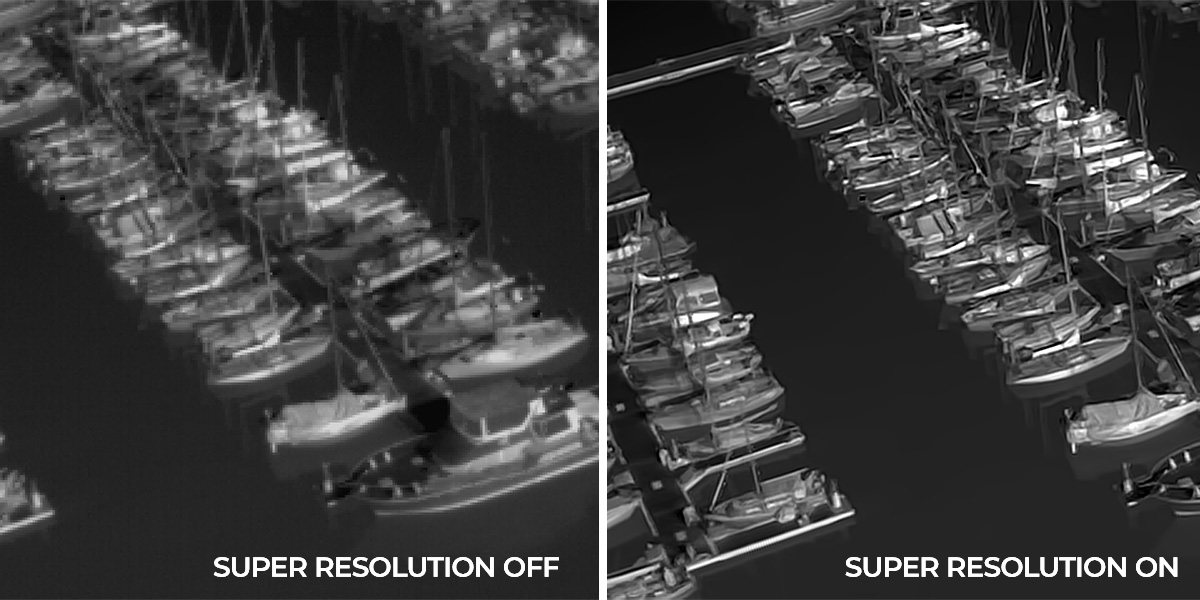

- Super Resolution
- Multiframe SR on full image or crop (e-zoom), 2X, 3X and 4X modes supported
- Supported Hardware
- Qualcomm: Snapdragon 8 gen 1 (RB5/QRB5165) & Snapdragon 8 gen 2 (QCS8550)
NVIDIA: Jetson Xavier & Jetson Orin
Other Qualcomm and NVIDA HW on request
- Supported Operating Systems
- Linux (18.04 and 20.04) verification done on Ubuntu distribution(s). Windows by request.
- Supported Video Formats
- 16b monochrome for LWIR/MWIR, 24b RGB/BGR for visible

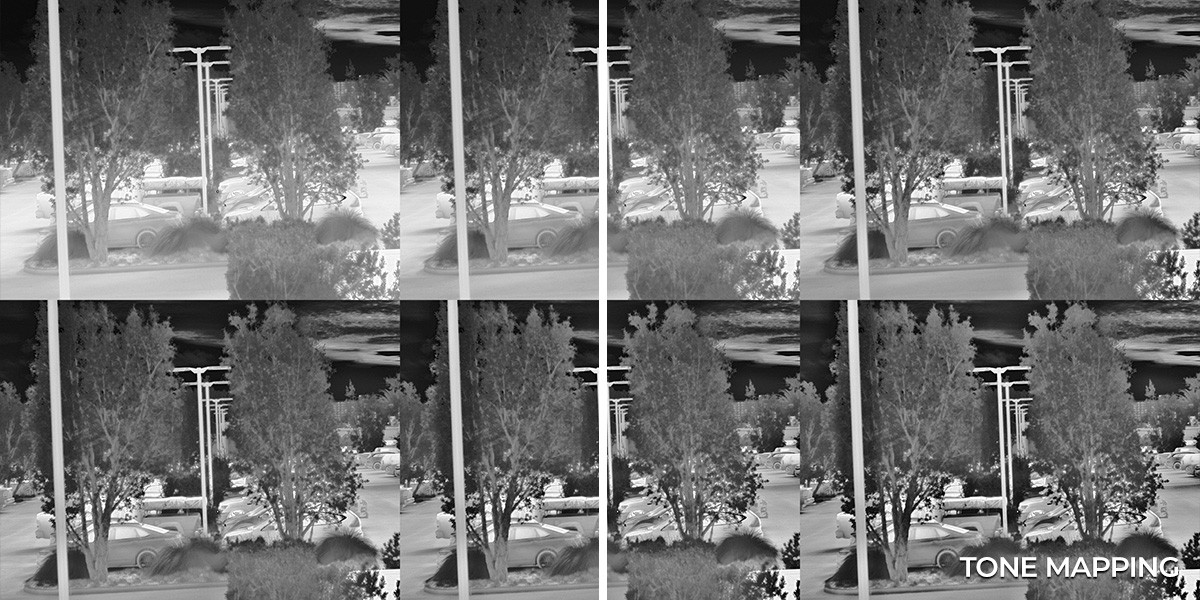

- Tone Mapping
- Global and locally adaptive methods supported, optimized for highly dynamic scenes
- Turbulance Mitigation (De-Scintillation)
- Reduced video distortion from turbulent air and compensate for MTF loss (thermal and EO)
- Video Fusion
- MSX and Color Night Vision fusion modes supported
- Video Stabilization
- Removal of high temporal frequency jitter (thermal and EO)
