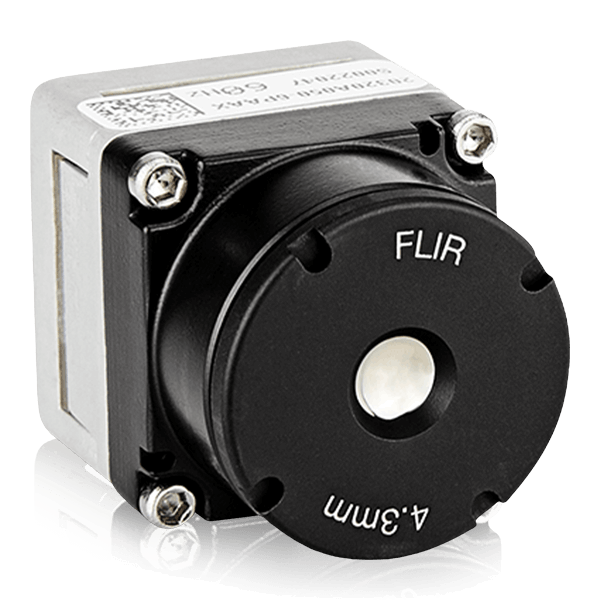

The 12 µm uncooled detector comes in two resolutions – 640 × 512 or 320 × 256 – and multiple frame rate options. Radiometric models offer absolute temperature measurement. With multiple lens configurations also available, Boson offers the widest range of LWIR models from Teledyne FLIR and the most flexibility to integration programs. The easy-to-use Boson SDK, user-friendly GUI, and comprehensive product integration documentation further simplify OEM integrated into higher-level systems.
For a plug-and-play sensitivity upgrade, the new Boson+, provides an industry-leading NeDT of <20 mK.
Industry-Leading Size, Weight, and Power (SWaP) with Radiometry
A full-featured VGA and QVGA LWIR thermal camera modules starting at 7.5 grams and <4.9 cm³
Proven Performance and Widely Deployed
Consistent performance, flexibility, and availability of the widest range of LWIR model configurations from Teledyne FLIR
Designed for Integrators
Shared mechanical/electrical compatibility across all Boson provides plug-and-play with existing designs
Specifications
Performance
- Scene Temperature Range
- to 140 °C (high gain) to 500 °C (low gain)
Radiometry
- Temperature Measurement
- No
Imaging & Optical
- Digital Zoom
- 1x to 8x zoom
- f-number
- 1.0
- FOV - Horizontal
- 50°
- Frame Rate
- 60Hz baseline; 30 Hz runtime selectable
- Non-Uniformity Correction (NUC)
- Factory calibrated; updated FFCs with FLIR’s Silent Shutterless NUC (SSN™)
- Pixel Pitch
- 12 µm
- Resolution
- 320 x 256
- Sensitivity [NEdT]
- <40 mK (Industrial); <50 mK (Professional); <60 mK (Consumer)
- Slow Video Option [factory configured]
- <9 Hz available
- Snapshots
- Full-frame snapshot via Boson GUI
- Spectral Band
- Longwave infrared; 8 µm – 14 µm
- Symbol overlay
- Re-writable each frame; alpha blending for translucent overlay
- Thermal Imaging Detector
- Uncooled VOx microbolometer
Connections & Communications
- Control Channels
- UART or USB
- Peripheral Channels
- I2C, SPI, SDIO
- Video Channels
- CMOS or USB2
Electrical
- Input Voltage
- 3.3 VDC
- Power Consumption
- Varies by configuration; as low as 500 mW
Mechanical
- Precision Mounting Holes
- Four tapped M1.6x0.35 (rear cover)
- Size (L x W x H)
- 21 × 21 × 11 mm (w/o lens)
- Weight
- 7.5 g without lens (configuration dependent)
Environmental & Approvals
- Compliance and Certifications
- NDAA compliant
ROHS compliant
REACH compliant
- Non-Operating Temperature Range
- -50°C to 85°C
- Operating Temperature Range
- -40°C to 80°C
- Operational Altitude
- 12 km (max altitude of a commercial airliner or airborne platform)
- Shock
- 1,500 g @ 0.4 msec
- Solar protection
- Integral
Export Designations
- ECCN Code
- 6A003.b.4.b (Fast Video, 60Hz)
6A993.A (Slow Video, 9Hz)
