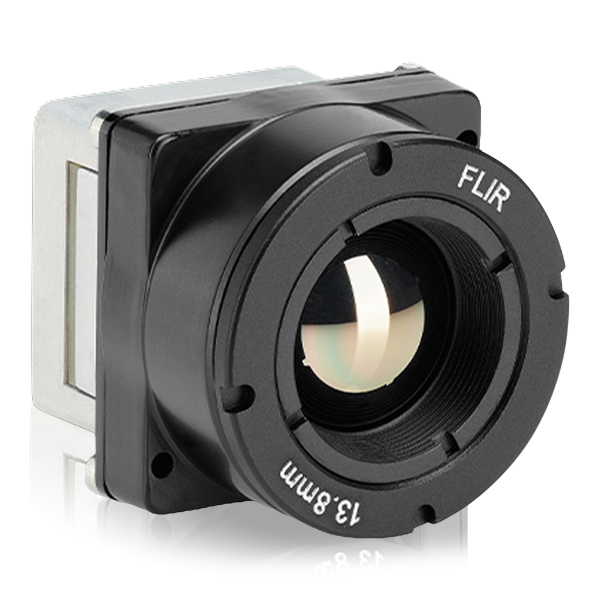

Boson 320, 16° (HFOV) 13.8 mm

Performance

Scene Temperature Range

to 140 °C (high gain) to 500 °C (low gain)

Radiometry

Temperature Measurement

No

Imaging & Optical

Digital Zoom

1x to 8x zoom

f-number

1.0

FOV - Horizontal

16°

Frame Rate

60Hz baseline; 30 Hz runtime selectable

Non-Uniformity Correction (NUC)

Factory calibrated; updated FFCs with FLIR’s Silent Shutterless NUC (SSN™)

Pixel Pitch

12 µm

Resolution

320 x 256

Sensitivity [NEdT]

<40 mK (Industrial); <50 mK (Professional); <60 mK (Consumer)

Slow Video Option [factory configured]

<9 Hz available

Snapshots

Full-frame snapshot, SDIO interface to support removable media

Spectral Band

Longwave infrared; 8 µm – 14 µm

Symbol overlay

Re-writable each frame; alpha blending for translucent overlay

Thermal Imaging Detector

Uncooled VOx microbolometer

Connections & Communications

Control Channels

UART or USB

Peripheral Channels

I2C, SPI, SDIO

Video Channels

CMOS or USB2

Electrical

Input Voltage

3.3 VDC

Power Consumption

Varies by configuration; as low as 500 mW

Mechanical

Precision Mounting Holes

Four tapped M1.6x0.35 (rear cover)

Size (L x W x H)

21 × 21 × 11 mm (w/o lens)

Weight

7.5 g without lens (configuration dependent)

Environmental & Approvals

Compliance and Certifications

NDAA compliant
ROHS compliant
REACH compliant

Non-Operating Temperature Range

-50°C to 85°C

Operating Temperature Range

-40°C to 80°C

Operational Altitude

12 km (max altitude of a commercial airliner or airborne platform)

Shock

1,500 g @ 0.4 msec

Solar protection

Integral

Export Designations

ECCN Code

6A003.b.4.b (Fast Video, 60Hz)
6A993.A (Slow Video, 9Hz)
