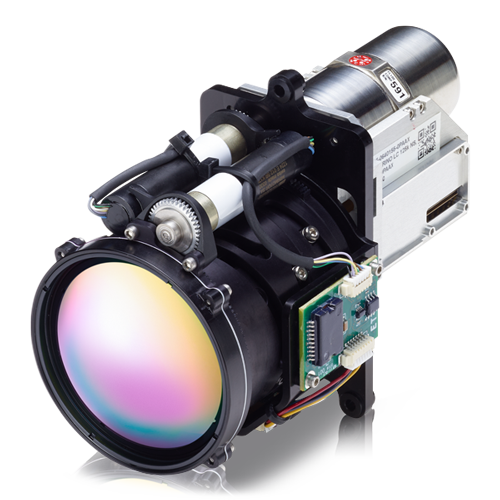

Neutrino IS Series
Neutrino IS series combines Teledyne FLIR’s world-class mid-wavelength infrared (MWIR) OEM camera modules and continuous zoom (CZ) lenses to offer high–performance imaging solutions with various FPA resolutions and CZ zoom/FOV ranges. Neutrino IS lowers development and manufacturing risk and improves time-to-market. Cutting-edge HOT FPAs, long life and low vibration linear coolers, common camera interfaces, and fully athermalized lenses make for the best-in-class solution. Each camera module and lens are designed for each other, providing optimal performance not achievable when buying and integrating cameras and lenses from multiple sources.
Teledyne FLIR Neutrino IS series is simply the best technical solution available. With nearly off-the-shelf delivery, industry-leading two-year warranty, real price competitiveness and well-known product support and product reliability, it offers the lowest risk solution. The Neutrino IS is an OEM camera module that is intended to be integrated into a higher level system.
MULTIPLE MWIR IMAGING SOLUTIONS
Multiple configurations from one manufacturer simplifies product development and production, providing higher value and lower risk.
- T2SL HOT 1280 x 1024/8 μm pixel pitch FPA
- Low power consumption with <12 W cooldown, <8 W steady state @ 23°C with lens
- SWaP optimized saves space, weight and power
- ITAR free
SEAMLESS OPTOMECHANICAL INTEGRATION
Cameras and lenses designed for each other for optimum performance and compatibility.
- Precisely aligned optical centerline to the center pixel
- Eliminate boresight wander and ensure focus through zoom
- Simplified single interface for camera and lens
- Precision aligned lens, easy to focus to the desired distance
MARKET LEADING MWIR CZ OPTICS & CAMERAS
World class performance, industry-leading two-year warranty, and affordable MWIR solutions from the market leader.
- Industry’s most advanced SXGA MWIR camera core
- Comprehensive product documentation
- Commercially developed, military qualified
- Highly qualified Technical Services team available to support integration
Building Zoom Out - Neutrino SX8 Ground ISR
Tower Zoom In - Neutrino SX8 Ground ISR
Tower Zoom Out - Neutrino SX8 Ground ISR
Model Finder
Results:
| Product | Resolution | Frame Rate | Pixel Pitch (μm) | FOV Horizontal | Temperature Measurement | Status | Compare |
|---|---|---|---|---|---|---|---|
Neutrino LC - CZ 15-300425-0065-00 |
640 x 512 HOT MWIR | up to 60 Hz | 15 µm | 1.8° to 35.5° (athermalized) | No | In Production Request Info |
|
Neutrino LC - CZ 19-290425-0043-00 |
640 x 512 HOT MWIR | up to 60 Hz | 15 µm | 1.9° to 27.4° (athermalized) | No | In Production Request Info |
|
Neutrino LC - CZ 27-275425-0066-00 |
640 x 512 HOT MWIR | up to 60 Hz | 15 µm | 2.0° to 20.4° (athermalized) | No | In Production Request Info |
|
Neutrino LC - CZF 25-250425-0053-00 |
640 x 512 HOT MWIR | up to 60 Hz | 15 µm | 2.2° to 21.7° (athermalized) | No | In Production Request Info |
|
Neutrino LC - CZF 25-375425-0057-00 |
640 x 512 HOT MWIR | up to 60 Hz | 15 µm | 1.5° to 21.9° (athermalized) | No | In Production Request Info |
|
Neutrino LC - CZF 30-600425-0058-00 |
640 x 512 HOT MWIR | up to 60 Hz | 15 µm | 0.9° to 18.2° (athermalized) | No | In Production Request Info |
|
Neutrino SX8 - CZ 15-300425-0059-00 |
1280 x 1024 HOT MWIR | up to 60 Hz | 8 µm | 1.9° to 38° (athermalized) | No | In Production Request Info |
|
Neutrino SX8 - CZF 30-300425-0060-00 |
1280 x 1024 HOT MWIR | up to 60 Hz | 8 µm | 1.9° to 19.4° (athermalized) | No | In Production Request Info |
|
